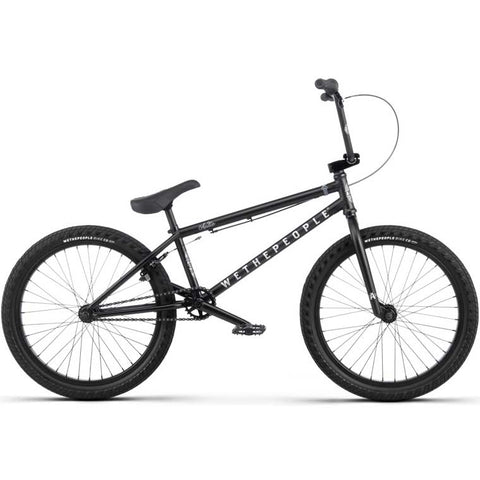

We the People Audio 22"
DESCRIPTION
FRAME: WETHEPEOPLE "AUDIO" frame, 4130 full sanko, tapered CS & SS, with removable brake mounts & guides
FORK: WETHEPEOPLE "AUDIO" fork, butted crmo tubing, 32mm offset
BARS: WETHEPEOPLE "AUDIO" bar, 4130 full crmo
Grips: SALT "EX" grips, 154mm, flangless
STEM: WETHEPEOPLE "LOGIC" topload stem, cnc alloy, 50mm reach
HEADSET: SALT "PRO" int. headset, sealed bearing
GYRO: holes for removable gyro tabs
LEVER: SALT "MOTO" brake lever, alloy
BRAKES: ECLAT “TALON” alloy u-brake rear
CRANKS: SALTPLUS "PRO48" tubular 3pc crank, crmo, 175mm, 48 spline
BB: SALT "MID" bb, 19mm, press fit, sealed bearing
PEDALS: ÉCLAT "SLASH" pedals, nylon/fiberglass
CHAIN: WETHEPEOPLE "SUPPLY" chain, Z510HX type
SPROCKET: WETHEPEOPLE "LOGIC" sprocket, cnc, 6061-T6 alloy, 25t
DRIVER: 1pc cassette driver, 9t, sealed bearing
FRONT HUB: SALT "EX" hub, fully sealed, 3/8"s male axle, 36h
REAR HUB: SALT "EX" cassette hub, fully sealed, 9t, hollow 14mm axle, 36h
FRONT RIM: WETHEPEOPLE "LOGIC" rim, double wall, sleeved, 36h
REAR RIM: WETHEPEOPLE "LOGIC" rim, double wall, sleeved, 36h
SEAT: ÉCLAT "BIOS" pivotal seat, mid padded (spec subject to change)
SEAT POST: SALT "AM" pivotal seat post, 150mm, alloy
SEAT CLAMP: integrated seat clamp
TIRES: WETHEPEOPLE "OVERBITE" 22" tires, 2.3", front & rear
WEIGHT: 11.73kg / 25.86lb
FRAME
TOP TUBE LENGTH: 21.9"
CHAIN STAY LENGTH: 14.2"
HEAD TUBE ANGLE: 74.5°
SEAT TUBE ANGLE: 71°
BB HEIGHT: 12.4"
STANDOVER HEIGHT: 9.15"
HANDLE BAR
BAR RISE: 9"
BAR WIDTH: 29.4"
BAR BACK SWEEP: 11°
BAR UP SWEEP: 2.5°
