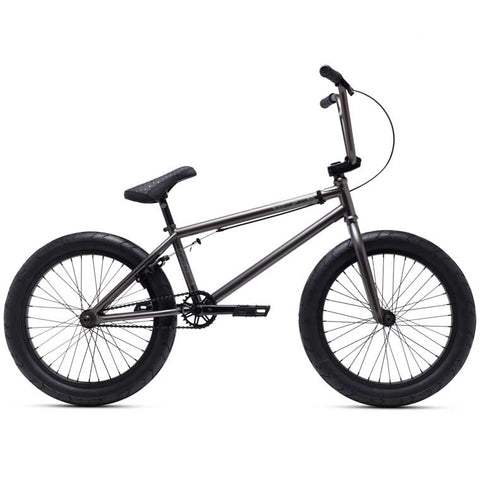

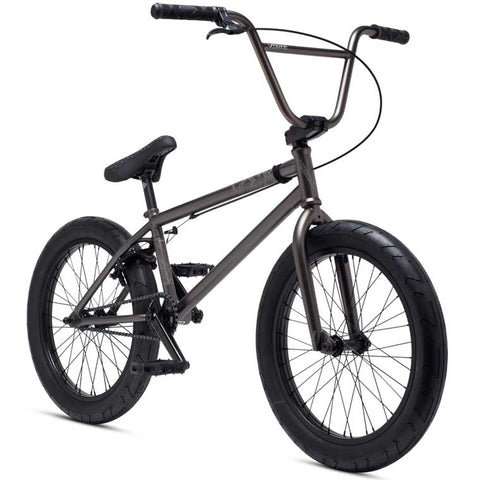

Verde Bikes Vex XL - graphite
DESCRIPTION
The Vex XL makes a serious step up with modern frame geo constructed with 100% chromoly. The new full 4130 version delivers a tall standover, reinforced downtube, removable brake mounts, and custom cast seat clamp. DUO Brand covers all the corners with Resilite pedals, and HSL 2.4” tires
Frame 100% chromoly frame w/ CNC machined integrated head tube, Mid BB, integrated seat post clamp, top tube gusset w/ Verde logo, removable brake mounts
Top Tube Length 21”
Chain Stay Length 13.25”
Head Tube Angle 74.5º
Seat Tube Angle 71º
BB Height 11.7”
Standover Height 9.4”
Fork Verde Regent 25, 100% chromoly, internally threaded pre-load bolt, tapered legs, 25mm offset
Bars 100% chromoly, 9.25” rise
Stem Verde top load, 50mm reach
Headset Sealed integrated
Brake Alloy U-brake
Lever Alloy, 2-finger design
Rear Hub Verde Regent, fully sealed, 14mm axle, 9-tooth driver
Front Hub Fully sealed, 3/8” female axle
Sprocket Verde Recon 25-tooth, stamped 6061 aluminum
Cranks Tubular chromoly 3-piece, 170mm
BB 19mm sealed Mid
Chain PYC 410, black
Pedals DUO Brand Resilite
Front Rim Verde Neutra, double wall, 6061 aluminum, 36-hole
Rear Rim Verde Neutra, double wall, 6061 aluminum, 36-hole
Front Tire 2.4” DUO Brand HSL, 65 psi
Rear Tire 2.4” DUO Brand HSL, 65psi
Seat DUO seat / post combo (not pictured)
Seat Clamp Integrated
Grips DUO Brand Homan flangeless grips w/ DUO Brand Resilite bar ends
Weight 24.9 lbs
