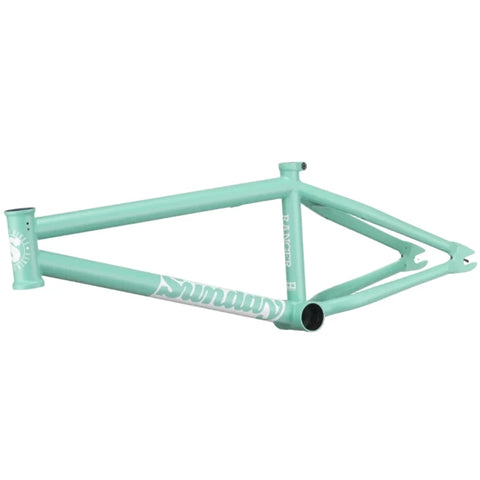

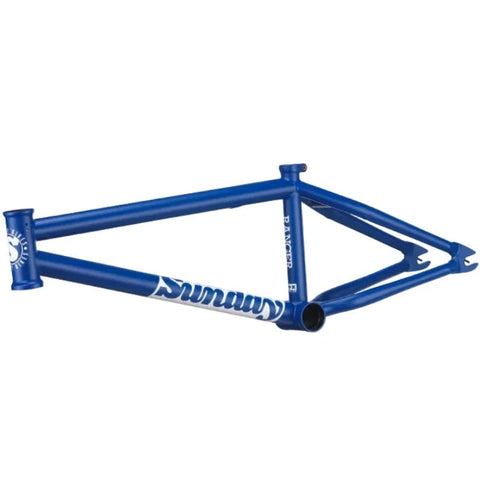

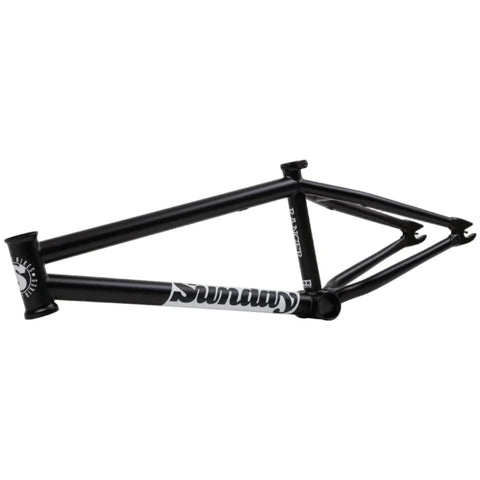

Sunday Ranger 18" frame
DESCRIPTION
for 18" wheels
18" TT
11.7" - 12" CS
75º HA
71º SA
10.5" BBH
7.7" SOH
2.30" tire clearance
4.4” HT length
- - - -
100% 4130 cromoly frame
integrated HT and Mid BB shell
HT is drilled and threaded for gyro tabs
Integrated seat clamp
butted seat tube & miter cut top tube: a miter-cut top tube creates a precise joint with the seat stays during welding. This increases the strength substantially over frames that use a “sandwiched” top tube at this critical junction
- - - - -
tapered CS and SS: both chain and seat stays taper to provide a refined and clean look to the frame while still providing strength. They are both angled on the inside for improved chain clearance and weight saving
- - - - -
hollow dropouts with chain tensioners: hollow 8mm wide dropouts are as light as a solid 5mm dropout, but over twice as strong. There is a small internal chain tensioner to hold the wheel in position and to simplify wheel removal
- - - - -
removable M6 brake hardware: proven, removable, brake mounts and cable guides and stops work flawlessly when installed and allow for a sleek overall look when they’re not
