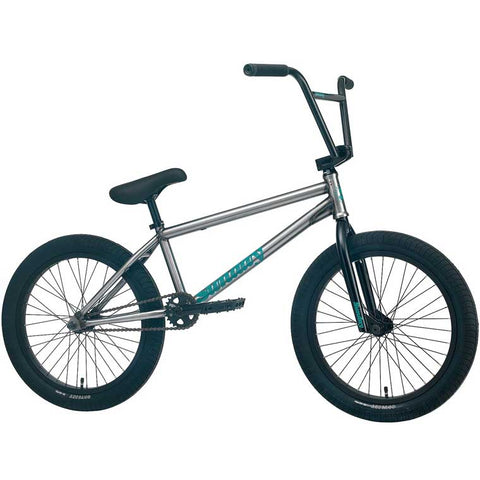

Sunday Forecaster Brett Silva (20.75") 2022
$539.95
SKU: 1098460
DESCRIPTION
This one being Brett Silva's signature model. You’ll find Signature spec’d design cues like the Odyssey Broc Signature Grips, combined with incredible parts like Odyssey Twisted Pro pedals, and Path Pro tires. A truly dialed bike for every style of riding. Follow @brettsilva
Highlights
100% Chromoly Frame
Sealed Front and Rear Hubs
Sunday Lightning Rims
Removable Brake Hardware
Sunday Seeley Signature Grips
Odyssey Twisted Pro Pedals
Sunday Freeze Top Load Stem
Odyssey Springfield Brakes and Lever
Odyssey Path Pro OEM 2.40" Tires
Sunday Badge Pivotal Seat
FSA Conical Headset
Specifications
Frame: Sunday Forecaster, 20.75" TT, 100% chromoly frame with integrated 1-1/8" head tube, and removable brake hardware
Fork: Sunday Forecaster, 20" fork w/ 2-piece chromoly steerer tube and welded pre-load
Handlebar: Sunday, 2-piece
Stem: Sunday Freeze front load, 48mm
Headset: FSA integrated conical, 1-1/8"
Alloy Cap: Sunday M16, aluminum
Brake Lever: Odyssey Springfield
Brakes: Odyssey Springfield U-brake
Brake Cable: Odyssey Quik Slic
Grips: Odyssey Broc Raiford
Seat: Sunday Badge, Pivotal
Seat post: Sunday Pivotal
Seat Clamp: Sunday
Sprocket: Sunday Sabertooth v2, 25T, steel
Cranks: 170mm, 3-piece, chromoly
BB Parts: Sealed, Mid, 19mm
Pedals: Odyssey Twisted PC Pro
Rims: Sunday Lightning, 20", 36H
Front Hub: Sunday, 36H, low-flange, sealed , 3/8" female axle
Rear Hub: Sunday 36H, sealed, 14mm male axle w/ 9T Driver
Spokes: 14g steel, black
Tires: Odyssey Path Pro OEM, 20 x 2.4" (F & R)
Chain: KMC Z1 wide
Approx. Weight: 26.78lbs (with brakes)
Frame Geometry
Top Tube Length: 20.75"
Head Tube Angle: 75.5°
Seat Tube Angle: 71°
Chainstay Length: 13.2-13.5”
Bottom Bracket Height: 11.7"
Standover: 9"
Handlebar Geometry
Rise: 9"
Width: 28.5"
Backsweep: 12°
Upsweep: 4°
*Specs subject to change without notice
