Sunday EX Erik Elstran (21") CSST - gloss toothpaste

DESCRIPTION

PREORDER - IN STOCK APPROXIMATELY JULY 8

With a 100% chromoly frame/fork/bar, the EX is a bike that is difficult to match at this price point. This is the first tier to include our trusted signature Wave downtube as well.
- - - - -

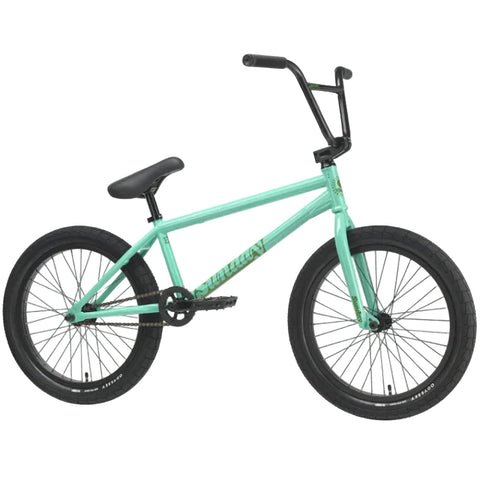

Erik Elstran’s signature EX in Gloss Toothpaste features removable braking, along with a pro-level Odyssey/Sunday parts package. This includes Odyssey C5 cassette, Stage 2 rims, Broc tires, Twisted Pro pedals, Utility Pro sprocket, Sunday Freeze stem, Seeley grips and more.
- - - - -
This bike means business, even when your approach to riding is all about having fun - just like Erik’s.
- - - - -
Odyssey Springfield Brake, Lever and Quik-Slick Kable are included (not pictured).
- - - - -
Key Features
100% Chromoly Frame, Fork, and 2-piece Bars
Sunday Signature Wave Down Tube
Sunday Saker 3-PC Cranks, 165mm
Odyssey Utility Pro 25t Sprocket
Odyssey C5 Cassette Hub
RHD/LHD switchable
Odyssey Stage 2 Rims
Odyssey Broc 2.40" Tires
- - - - -
Specifications
Frame: Sunday EX, 21" TT, 100% chromoly frame with wave downtube, w/ removable brake hardware
Fork: Sunday EX, 20", 100% chromoly fork w/ 2-piece steerer tube and welded pre-load, 25mm offset
Handlebar: Sunday, 100% chromoly, 2-piece
Stem: Sunday Freeze top load, 48mm
Headset: FSA integrated conical, 1-1/8"
Alloy Cap:  Sunday M16, aluminum
Brake Lever:  Odyssey Springfield
Brakes: Odyssey Springfield U-brake
Brake Cable:  Odyssey Linear Quik Slic
Grips: Odyssey Broc Raiford Signature
Seat: Sunday Badge, Pivotal
Seat post:  Sunday Pivotal
Seat Clamp: Sunday
Sprocket: Odyssey Utility Pro, 25T, w/Plastic Guard
Cranks: Sunday Saker, 165mm (LHD/RHD Compatible)
BB Parts: Sealed, Mid, 19mm
Pedals: Odyssey Twisted PC Pro
Rims: Odyssey Stage 2, 20", 36H
Front Hub: Sunday, 36H, low-flange, sealed , 3/8" inbound axle bolts
Rear Hub: Odyssey C5 Cassette Hub, 36H, 14mm axle, 9T Driver, non-drive side plastic guard, RHD/LHD Switchable
Spokes: 14g steel, black
Tires: Odyssey Broc Tire, 20 x 2.4" (F & R)
Chain: KMC Z1 wide
Approx. Weight: 25.75lbs (with brakes)
- - - - -
Frame Geometry
Top Tube Length: 21"
Head Tube Angle: 75°
Seat Tube Angle: 71°
Chainstay Length: 13.2-13.5”
Bottom Bracket Height: 11.5"
Standover: 9"
- - - - -
Handlebar Geometry
Rise: 9"
Width: 28.5"
Backsweep: 12°
Upsweep: 4°
- - - - -
*Specs subject to change without notice.
