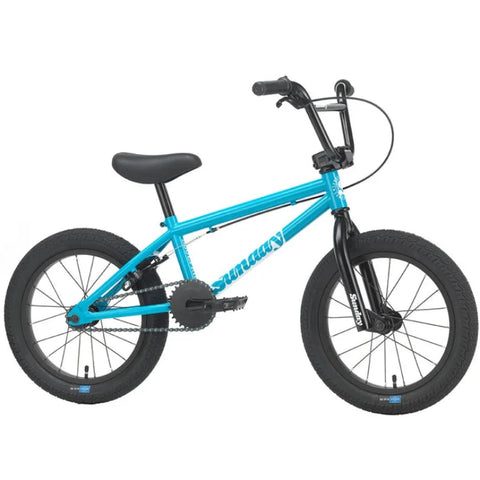

Sunday Blueprint 16" - gloss ocean blue

DESCRIPTION

PREORDER - IN STOCK APPROXIMATELY JULY 8

The Blueprint 16" is ready to help kids learn to ride.
- - - - -
Sunday's entry-level 16” bikes are fun and easy to use so kids can keep learning. Simplicity and reliability are the goals with the Blueprint. Key details include a seat/post combo in a comfortable level riding position along with an adjustable reach brake lever that can be tailored to each rider. Reliable Odyssey Springfield brakes and Sunday Current v1 tires round out the package.
- - - - -
Key Features
KMC S1 Chain
Sunday Badge Seat and Post Combo (new more level position)
Odyssey Springfield Brakes
Odyssey Quik Slic Kable
13t Odyssey Freewheel
Sunday Current 16" Tires
- - - - -
Specifications
Frame: Sunday Blueprint, 15.5" top tube
Fork: Sunday Blueprint 16" fork w/ 2-piece steerer tube
Handlebar: Sunday, 2-piece
Stem: Front load, aluminum, 40mm
Headset: Traditional 1-1/8"
Alloy Cap: Aluminum cap w/ star nut
Brake Lever: Junior Aluminum, Short Reach, U-brake compatible
Brakes: Odyssey Springfield U-brake
Brake Cable: Odyssey Quik Slic
Grips: Velo Junior
Seat: Sunday Badge, seat and post combo
Seat Post: 1" steel
Seat Clamp: Integrated
Sprocket: Sunday S-Logo, 28-T, steel
Cranks: 115mm, 1-piece
BB Parts: Loose-ball, American, 19mm
Pedals: FPD Junior platform, plastic
Rims: P-7X aluminum, 16", 20H
Front Hub: 20H, low-flange, loose-ball, 3/8" axle
Rear Hub: 20H, loose-ball, 3/8 axle w/ Odyssey 13T freewheel
Spokes: 14g steel, black
Tires: Sunday Current v1, 16x2.1" (F&R)
Chain: KMC S1
Approx. Weight: 21.73lbs (with brakes)
- - - - -
Frame Geometry
Top Tube Length: 15.5"
Head Tube Angle: 73.5°
Seat Tube Angle: 71°
Chainstay Length: 11.25"
Bottom Bracket Height: 9.25"
Standover: 6.9"
- - - - -
Handlebar Geometry
Rise: 6.75"
Width: 23"
Backsweep: 12°
Upsweep: 1°
- - - - -
*Specs subject to change without notice.
