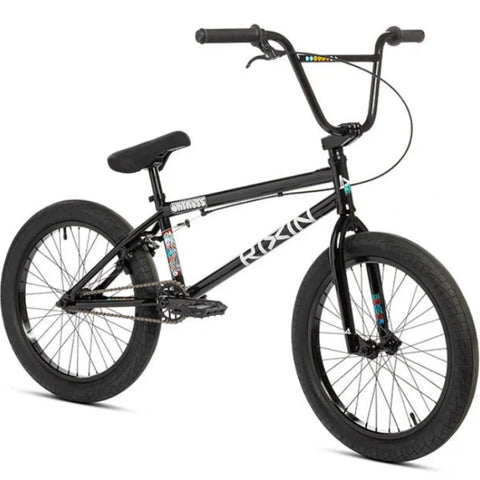

Rixin Express 20" bike
DESCRIPTION
The Rixin Express is made to perform at a higher level with more progressive geometry and quality that can handle the abuse of more advanced riding, whether it's street, park, or dirt. Chromoly downtube frame and full chromoly fork have the strength needed to take it all on. 2.4" street tires on wheels with sealed bearing hubs, Rixin Pivotal seat and Theory components complete the build with everything you need.
- - - - -
Top Tube Length: 20.5"
Headtube angle: 75°
Seat tube angle: 71°
Standover Height: 9"
Bottom Bracket Height: 11.75"
Chainstay Length: 13" Slammed
Fork Offset: 30mm
- - - - -
Frame: 4130 Chromoly DT
Fork: 100% 4130 Chromoly w/ Tapered Legs (30mm offset)
Bars: Hi-Ten (9.0" Rise x 29.5" Wide)
Grips: Theory Data flanged 150mm w/ Theory Bar ends
Stem: Theory Bond Top Load (50mm)
Headset: Theory Sealed Integrated
Brake Lever: Alloy 2-Finger
Brakes: 990 U-brakes
Cranks: 3-Piece Tubular Chromoly 8-Spline (165mm Length)
Bottom Bracket: Sealed Mid (19mm)
Pegs: N/A
Pedals: Theory Outside Nylon
Chain: Theory 410
Sprocket: Theory Verify, 6061-T6 Aluminum (25T)
Seat: Rixin Pivotal
Seat Post: Alloy Pivotal, 250mm (25.4mm)
Seat Clamp: Alloy Clamp
Front Hub: Alloy Low Flange, Sealed (3/8" Axle)
Rear Hub: Alloy Sealed Cassette (14mm Axle)
Driver: 9T Sealed
Rims: 6061 Aluminum Single Wall (36H)
Tires: Street Design (20 x 2.4")
Weight: 24lbs 7oz
Recommended Sizing Guide: 5'1 - 5'8"
