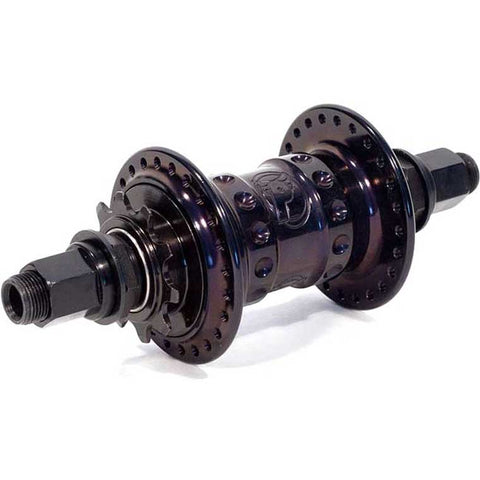

Profile SS high flange cassette hub
$219.95
SKU: 1095193
DESCRIPTION
36h or 48h, RHD or LHD
made in the USA
two precision 6903 sealed bearings in each hub
four precision 6802 sealed bearings in rear hub driver
four individual pawl/spring engagement mechanism with CNC machined driver
AL (aluminum) and CROMO (cromoly) female axles accept 3/8" x 16 tpi bolts with the following options:
a) cromo standard bolts with AL Volcano washers
b) titanium standard bolts with AL Volcano washers - add $35
c) cromo Madera Beach bolts (3/8" bolts)
d) cromo Button bolts (full 3/8" or 3/8" with integrated 14mm adapter)
e) cromo Button PEG bolts (3/8" with integrated 10mm long 14mm adapter for peg / dropout)
f) titanium Button bolts (full 3/8" or 3/8" with inregrated 14mm adapter) - add $35
g) cromo Hex bolts (full 3/8" or 3/8" with integrated 14mm adapter)
h) cromo Hex PEG bolts (3/8" with integrated 10mm long 14mm adapter for peg / dropout)

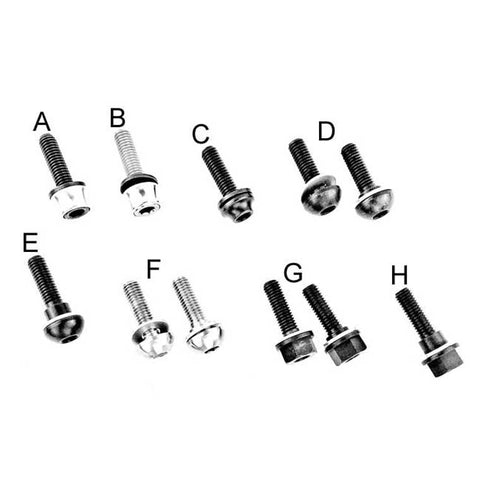

- bolt chart available as you click through product images
- all bolts accept 8mm Allen key - “Hex” bolts also accept 17mm wrench or socket
- you can select hub cone spacers colors (female hubs: both sides / male hubs: non-drive side only) *
- if you select Volcano washers, we'll send polished unless otherwise requested in "order comments"
- please include instructions in the “order comments” if you want an axle / bolt configuration not listed in the choices above (example: one Hex bolt and one Hex PEG bolt on a hub, etc.)
14mm male axle options:
heat-treated GDH (gun-drilled hollow) cromo with alloy axle nuts
heat-treated GDH (gun-drilled hollow) cromo with alloy axle nuts
titanium GDH (gun-drilled hollow) with alloy axle nuts add $90
driver options:
cromo 1-pc driver: 9t, 10t, 11t
cromo 2-pc driver + removable cog: 12t - 18t
titanium 1-pc driver (add $40): 9t, 10t, 11t
titanium 1-pc driver (add $40): 9t, 10t, 11t
titanium 2-pc driver + removable cog (add $40): 12t - 18t
