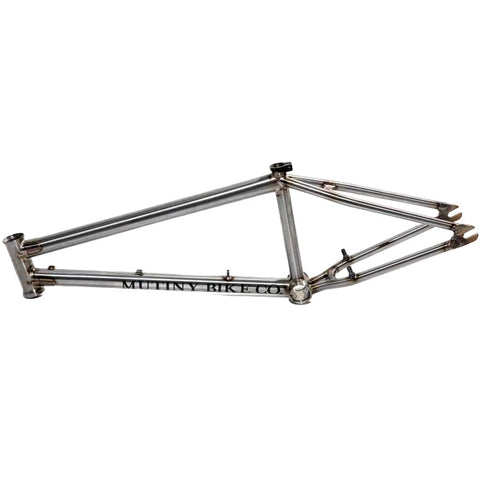

Mutiny PMA frame



21.3", 21.6", 21.8" TT
13.7" - 14.25” CS
74.5º HA
71º SA
11.45” BBH
9.15” SOH (center of BB to top of top tube)
5.2 lbs
integrated HT
Mid BB shell
welded CS brake mounts and cable guides / cable stop (first guide is on right side of DT)
DT and TT gussets
125mm tall HT (please be aware this frame might require a fork with a longer steerer tube)
4130 Cromoly Seat Clamp with 6mm bolt (clamp installed on frame in pic, but not welded to frame)
black Mutiny seat post clamp included
6.5mm Dropouts with integrated chain adjusters (included)
made in the USA by Dutch
frame is supplied raw - no paint or finish
