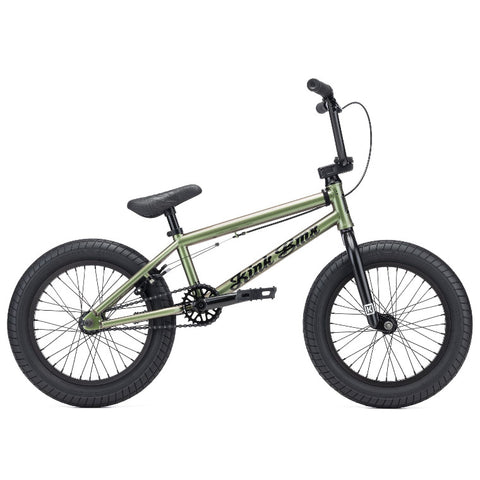

Kink Carve 16" 2026
DESCRIPTION
The Kink Carve 16” ensures riders of every age can not only find a bike that fits them but can also hold up to some real BMX riding. Kids are getting serious about BMX at younger and younger ages, and we love it. Properly proportioned geometry and components create a modern, yet comfortable ride, suited for the rider who isn’t ready for the bump up to a larger 18” bike yet. Made for all types of riding, the Kink Carve comes in a really cool gloss Patina Green colorway
- - - - -
Geometry
Toptube Length 16.5"
Chainstay Length 11.25"
Headtube Angle 74.5°
Seattube Angle 71°
Standover Height 6.75″
Bottom Bracket Height 9.75"
Fork Offset 32mm
- - - - -
Frame Material Steel
Fork Kink 16" Stryker Fork 4130 Chromoly Steerer Tapered Fork Legs
Compression Bolt Size 24mm
Handlebars Kink T700 Bar 7" 100% Hi-Ten Steel
Bar Style 2 Piece
Bar Rise 7"
Grips Mission Helix Mini Grips
Grip Style Flangeless
Bar End Size 31mm
Stem Mission Topload 40mm
Headset Mission Sealed Integrated (41.8 x 45)
Brake Lever Mission Mini
Cable Type Linear
Brakes Mission Cease V2
Frame Brake Style Welded
Cranks Mission Triumph 3pc Tubular Chromoly 140mm - 8 Spline
Drive Side Option RHD
Spindle Size 19mm
Spindle Splines 8
Bottom Bracket Sealed Mid 19mm
Pedals Kink Hemlock Pedals
Chain Mission 410
Sprocket Mission Rank 25T
Hubs Mission Covert Unsealed 3/8" Axle / Mission Function Semi-Sealed Cassette 14mm, 9t
Rims Mission X7 / Mission X7
Seat Mission Cypress Mini Combo
Seat Post Mission Combo Steel Post
Post Diameter 25.4mm
Tires Mission Tracker 16x2.4
Pegs None
