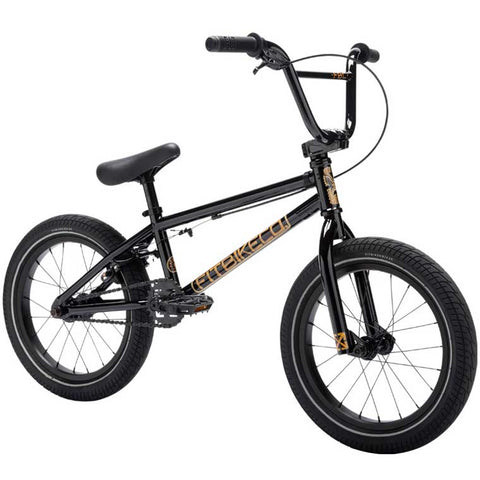

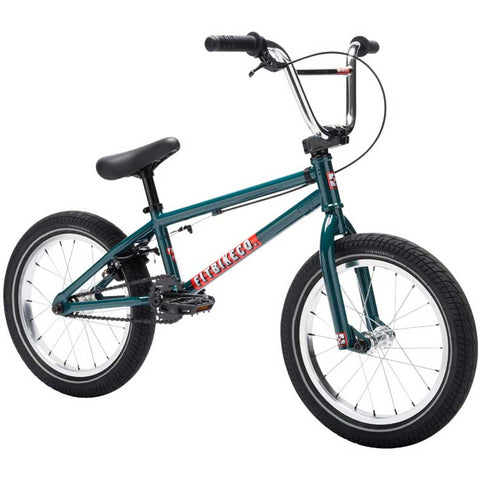

Fit Bikes Misfit 16 2026
DESCRIPTION
With young riders pushing the level of riding, smaller bikes need to keep up. The MISFIT 16” is the smallest bike in our line to feature a fully sealed Integrated Headset. Utilizing a CNC machined headtube, also drilled for thread-on Gyro tabs, the headset rests inside the head-tube rather than in press-in cups to avoid broken cups or the lower cup shifting when a fork is bent causing a tight spot in your headset. Also drawing influence from its aftermarket counterpart we’ve lightened up the frame and fork for ’26 creating a bike as limitless as riders imaginations.
- - - - -
TT SIZE: 16.25”
FRAME: Cro-Mo Top & Down Tubes
GEOMETRY: 16
HEADSET: Integrated w/Gyro Holes Integrated
BB: Mid Sealed
BARS: 2-Piece 7” x 24”
FORK: New 31mm Offset Cro-Mo Steerer
STEM: Mini Top Load
SEAT: 25.4mm Flatter/ More Padded Integrated Combo
CRANKS: Tubular Cro-Mo 127mm
SPROCKET: Fit Bite 24T
PEDALS: Nylon Platform 9/16”
FRONT WHEEL: Wider 20H Single Wall w/Unsealed Hub
REAR WHEEL: Wider 20H Single Wall w/Sealed 9T Cassette
TIRES: FIT OEM 2.25”
BRAKES: U-Brake w/Low Tension Springs, Short Reach Lever, Linear Cable
MISC: 17mm Rear Axle Nuts
