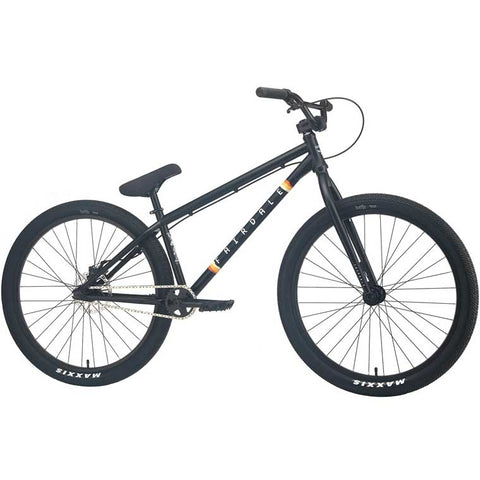

Fairdale Hareraiser 26"



Frame: 100% 4130 chromoly DJ frame, 3/8" Dropout, Threaded 73mm BB, Disc Mount
Fork: Fairdale Hareraiser Chromoly, 15mm Thru-Axle
Handlebar: Fairdale MX-4
Stem: Sunday Freeze, 48mm Front Load
Headset: FSA Orbit Sealed
Brake Lever: Odyssey Monolever
Brakes: Mechanical Disc
Grips: Fairdale Swan
Saddle: Odyssey Big Stitch, Pivotal
Seat Post: Pivotal 27.2mm
Seat Clamp: Fairdale 30mm
Cranks: 19mm 8-Spline, 170mm
Chainwheel: 28T
BB Parts: Euro
Pedals: Odyssey Twisted Pro PC
Rims: 26" 32H
Front Hub: Sealed 15mm Thru Axle
Rear Hub: Sealed Cassette, 3/8" Axle, Disc
Tires: Maxxis DTH 2.3"
Chain: KMC Z1eHX
Driver: 12T

Fork Axle to Crown: 455mm
Fork Offset: 30mm
Top Tube (Effective): 625mm
Seat Tube (BB Center to TT Center): 340mm
Seat Tube Angle: 70.5°
Head Tube Length: 120mm
Head Tube Angle: 73°
Chain Stay Length: 379-389mm
Standover: 678mm
Stack: 561mm
Reach: 452mm
BB Drop: 28mm
Rear Dropout Spacing: 10x135mm
BB Type: 73mm threaded
Seat Post: 27.2mm
Seat Clamp: 30mm
Rear Tire Clearance: 2.3"
Wheel Size: 26"
