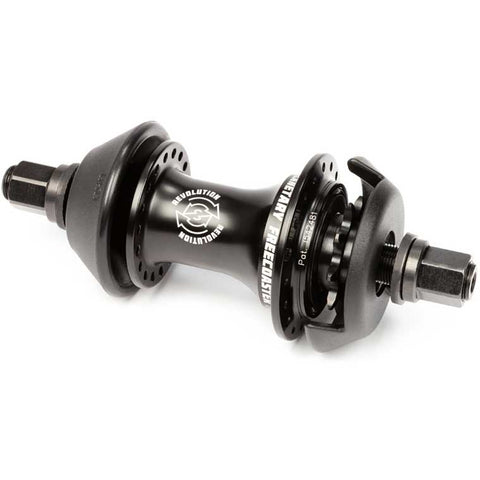

BSD Revolution freecoaster hub



36h only
RHD or LHD specific
planetary system clutch
6061-T6 AL shell
hollow 14mm 4140 heat-treated cromo axle with 6mm broached ends
4130 heat-treated cromo axle nuts
468g without hub guards
30% lighter than conventional freecoaster hubs
no gap when pedaling forward
eradicates unwanted engagement on rollbacks
feels and sounds like a cassette hub
no need for oversized hub bearings due to low axial load
BSD PC pop on hub guards included
the Planetary clutch is the control mechanism for the hub. While going forwards it ensures minimal slack, while going backwards the clutch creates maximum slack. Magical huh? It's also much lighter than a traditional cone style freecoaster clutch. Patent pending
the 9t driver is similar to what you'd find on a cassette hub however it has sprung down pawls, this enables the hub to stay disengaged until you pedal forward. Also due to the mechanism of the hub the driver bearings are not under high axial loads like traditional freecoasters
