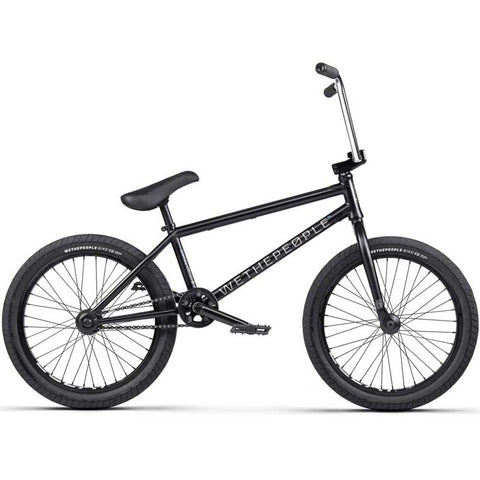

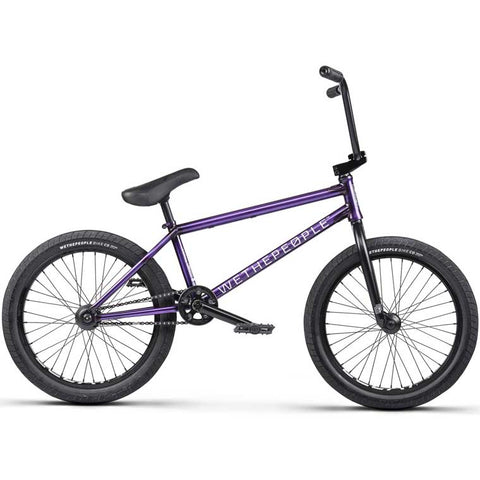

We the People Trust CS (21") 2024

DESCRIPTION

FRAME: WETHEPEOPLE "TRUST" frame, 4130 full crmo, tapered SS & CS, with removable brake mounts & guides, 127mm head tube
FORK: SALTPLUS "TRUST" fork, 4130 full crmo, butted crmo steerer, 26mm offset
BARS: SALTPLUS "TRUST" bar, 4130 full crmo
Grips: ÉCLAT "SHOGUN" grips, flangeless, with ÉCLAT "TECH-BOLT" barends
STEM: WETHEPEOPLE "HYDRA" topload stem, cnc alloy, 50mm reach, 36mm rise
HEADSET: SALT "PRO" int. headset, sealed bearing
GYRO: holes for removable gyro tabs
LEVER: SALT "MOTO" brake lever, alloy
BRAKES: ECLAT “TALON” alloy u-brake rear
CRANKS: SALTPLUS "ELITE" tubular 3pc crank, L&R, crmo, 160mm, 48 spline
BB: SALT "MID" bb, 19mm, press fit, sealed bearing
PEDALS: ÉCLAT "CENTRIC" pedals, nylon/fiberglass
CHAIN: WETHEPEOPLE "SUPPLY" chain, Z510HX type
SPROCKET: WETHEPEOPLE "PARAGON" sprocket & nylon guard, 6061-T6 alloy, 25t
DRIVER: 1pc driver, 9t, sealed bearing, setup as cassette
FRONT HUB: ÉCLAT "CORTEX" hub, fully sealed, 3/8"s female bolts, 36h
REAR HUB: ÉCLAT "SHIFT" freecoaster hub, fully sealed, "Hybrid Sytem" convertible internals, 9t drive, 14mm hollow axle, 36h
HUBGUARDS: ÉCLAT hub guards - nylon/fiberglass front (x2), nylon/fiberglass rear (x2)
FRONT RIM: ÉCLAT "TRIPPIN" rim, double wall, 36h
REAR RIM: ÉCLAT "TRIPPIN" rim, double wall, 36h
SEAT: ÉCLAT "BIOS" pivotal seat, fat padded (spec subject to change)
SEAT POST: SALT "AM" pivotal seat post, 150mm, alloy
SEAT CLAMP: WETHEPEOPLE "LOGIC" seat clamp, 4130 crmo
TIRES: WETHEPEOPLE "ACTIVATE" tires, 2.35", 100PSI , front & rear
PEGS: SALT "AM" pegs, nylon, 4.5" long, x2

FRAME
TOP TUBE LENGTH: 21"
CHAIN STAY LENGTH: 12.75"
HEAD TUBE ANGLE: 75.5°
SEAT TUBE ANGLE: 71°
BB HEIGHT: 11.7"
STANDOVER HEIGHT: 9"

HANDLE BAR
BAR RISE: 9.25"
BAR WIDTH: 29.25"
BAR BACK SWEEP: 12°
BAR UP SWEEP: 2.5°
