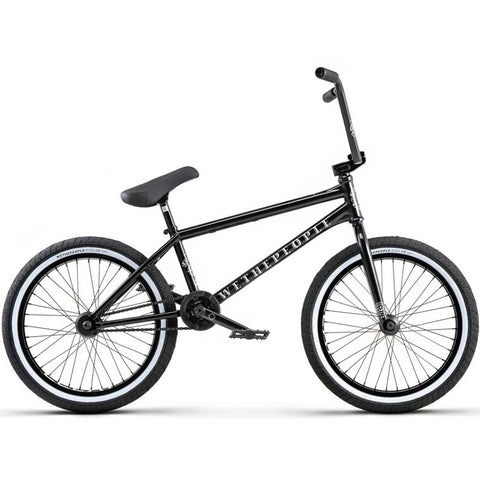

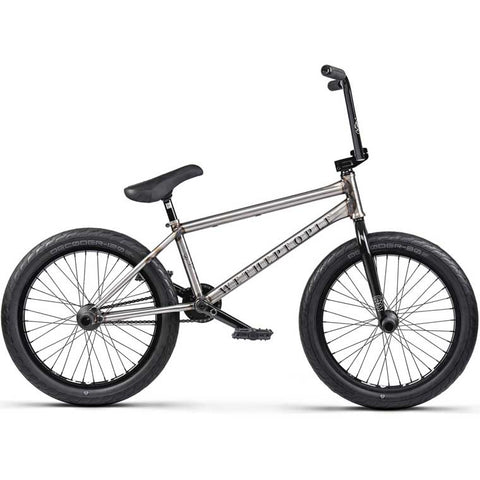

We the People Battleship (20.75") 2024

DESCRIPTION

FRAME: WETHEPEOPLE "BATTLESHIP" frame, 4130 full crmo, hydroformed gussets, with removable brake mounts & guides
FORK: WETHEPEOPLE "BATTLESHIP" fork, post liquid heat-treated butted sanko tubing, 1pc cnc steerer, 15mm offset
BARS: ÉCLAT "STRANGLER" bar, 4pc, post liquid heat-treated 4130 crmo, 25.4mm clamping
Grips: ÉCLAT "SHOGUN" grips, flangeless, with ÉCLAT "TECH-BOLT" barends
STEM: ÉCLAT "DOMAIN" topload stem, cnc alloy, 48mm reach, 25.4mm clamping
HEADSET: ÉCLAT "WAVE 16" int. headset, sealed bearing
LEVER: SALT "MOTO" brake lever, alloy
BRAKES: ECLAT “TALON” alloy u-brake rear
CRANKS: WETHEPEOPLE "LOGIC" tubular 3pc crank, 22mm, crmo, 160mm, 48 spline
BB: WETHEPEOPLE "COMPACT" bb, 22mm, press fit, sealed bearing
PEDALS: ÉCLAT "CENTRIC" pedals, nylon/fiberglass
CHAIN: SALTPLUS "WARLOCK" half-link chain
SPROCKET: ÉCLAT "ELEVATE" sprocket & nylon guard, 6061-T6 alloy, 25t
DRIVER: 1pc driver, 9t, sealed bearing, setup as freecoaster
FRONT HUB: ÉCLAT "CORTEX OS" hub, fully sealed, 3/8"s female bolts, 36h, oversize bearings
REAR HUB: ÉCLAT "SHIFT" freecoaster hub, fully sealed, "Hybrid Sytem" convertible internals, 9t drive, 14mm hollow axle, 36h
HUBGUARDS: ÉCLAT hub guards - nylon/fiberglass front (x2), nylon/fiberglass rear (x2)
FRONT RIM: ÉCLAT "BONDI" rim, 38mm wide, flash welded, double wall, 36h
REAR RIM: ÉCLAT "BONDI" rim, 38mm wide, flash welded, double wall, 36h
SEAT: ÉCLAT "BIOS" pivotal seat, fat padded (spec subject to change)
SEAT POST: WETHEPEOPLE "TEAM" pivotal seat post, 200mm, 6061-T6 alloy,
SEAT CLAMP: WETHEPEOPLE "LOGIC" seat clamp, 4130 crmo
TIRES: ÉCLAT "DECODER" tires, 2.40", 80PSI, front & rear
PEGS: ÉCLAT "VENOM" pegs, nylon/fiberglass, 4.8" long, x2
WEIGHT: 12.57kg / 27.81lbs

FRAME
TOP TUBE LENGTH: 20.75"
CHAIN STAY LENGTH: 13" (12.7"-13.2")
HEAD TUBE ANGLE: 75.5°
SEAT TUBE ANGLE: 71°
BB HEIGHT: 11.7"
STANDOVER HEIGHT: 9"

HANDLE BAR
BAR RISE: 9.1"
BAR WIDTH: 29.7"
BAR BACK SWEEP: 11.5°
BAR UP SWEEP: 2.5°
