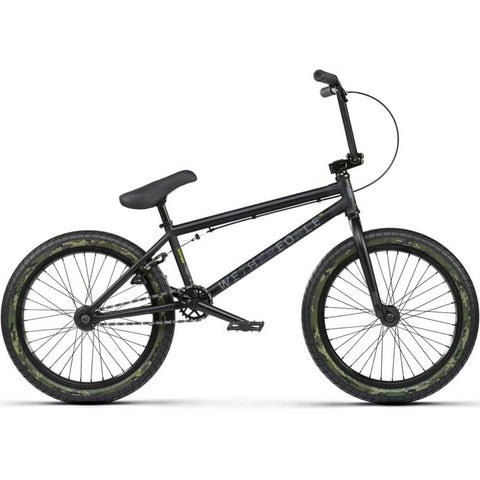

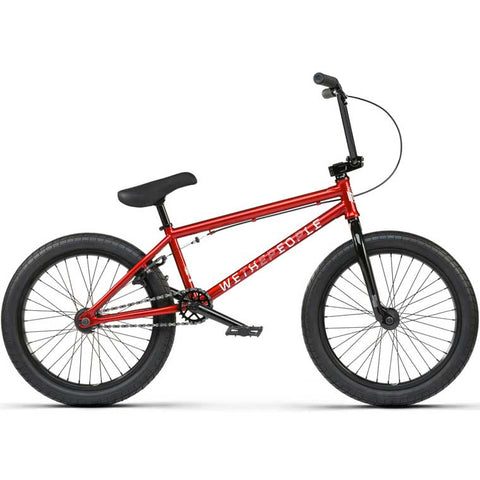

We the People Arcade (20.5") 2024
DESCRIPTION
FRAME: WETHEPEOPLE "ARCADE" frame, 4130 crmo top & down tube, 1020 hi-ten
FORK: SALT "AM 20" fork, 1020 hi-ten, 4130 crmo steerer, 26mm offset
BARS: SALT "ARCADE" bar, 1020 hi-ten
Grips: SALTPLUS "XL" grips, 155mm, flangless
STEM: SALT "COMP" topload stem, 50mm reach
HEADSET: SALT "PRO" int. headset, sealed bearing
GYRO: holes for removable gyro tabs
LEVER: SALT "AM" brake lever, alloy
BRAKES: SALTPLUS “GEO XL” alloy u-brake rear
CRANKS: SALT "AM" tubular 3pc crank, seamless, crmo, 165mm, 8 spline
BB: SALT "MID" bb, 19mm, press fit, sealed bearing
PEDALS: SALTPLUS "STEALTH LB" pedals, nylon/fiberglass
CHAIN: SALT "AM" chain, Z1 type
SPROCKET: SALT "GATEWAY" sprocket, steel, 25t
DRIVER: 1pc cassette driver, 9t, sealed bearing
FRONT HUB: SALT "PRO" hub, fully sealed, 3/8"s male axle, 36h
REAR HUB: SALT "PRO" cassette hub, fully sealed, 9t, 14mm axle, 36h
HUBGUARDS: SALT "PRO" hub guards - nylon/fiberglass front (x2), nylon/fiberglass rear (x2)
FRONT RIM: SALT "VALON" rim, single wall, 36h
REAR RIM: SALT "VALON" rim, single wall, 36h
SEAT: ÉCLAT "COMPLEX" combo seat, fat padded (spec subject to change)
SEAT POST: SALT "AM" pivotal seat post
SEAT CLAMP: ÉCLAT "PURE" seat clamp, 6061-T6 forged alloy
TIRES: SALTPLUS "STING" tires, 2.35", front & rear (spec subject to change)
WEIGHT: 12.39kg / 27.31lbs
FRAME
TOP TUBE LENGTH: 20.5"
CHAIN STAY LENGTH: 12.75"
HEAD TUBE ANGLE: 75°
SEAT TUBE ANGLE: 71°
BB HEIGHT: 11.75°
STANDOVER HEIGHT: 8.75"
HANDLE BAR
BAR RISE: 9"
BAR WIDTH: 29"
BAR BACK SWEEP: 11°
BAR UP SWEEP: 2.5°
