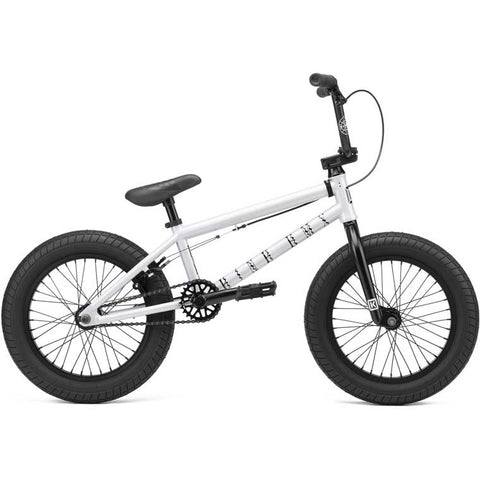

Kink Carve 16" 2023

Options: gloss digital white


The Kink Carve 16” bike is the younger sibling of our Kicker 18”, and it ensures every age and every height rider can find a perfect fitting Kink bike. Kids are getting into BMX younger and younger, and we love it. The 2023 Carve comes in a great Gloss Digital White color, which is complimented by black components throughout
Properly proportioned geometry and components create a modern, yet comfortable ride, suited for the rider who isn’t ready for the bump up to a larger 18” bike yet. Still stacked with great parts, the 2023 Carve comes with 7” Kink T700 bars, a short reach 40mm Mission topload stem, rock solid 3-piece tubular chromoly cranks with sealed Mid bottom bracket, a sealed integrated headset, and modern tread design 2.4” tires
Top Tube 16.5”
Rear Triangle 11.25"
Head Tube 74.5
Stand Over 6.75"
BB Height 9.75"
Fork Kink 16" Stryker Fork 4130 Chromoly Steerer Tapered Fork Legs
Fork Offset 32mm
Handlebars Kink T700 Bar 7" 100% Hi-Ten Steel
Grips Mission Helix Mini Grips
Stem Mission Topload 40mm
Headset Mission Sealed Integrated (41.8 x 45)
Brake Lever Mission Mini
Cable Type Linear
Brakes Mission Cease V2
Cranks Mission Triumph 3pc Tubular Chromoly 140mm - 8 Spline
Drive Side Option RHD
Bottom Bracket Sealed Mid 19mm
Pedals Kink Hemlock Pedals
Chain Mission 410
Sprocket Mission Rank 25T
Hubs Mission Covert Unsealed 3/8" Axle / Mission Function Semi-Sealed Cassette 14mm
Driver 9 Tooth
Rims Mission X7 / Mission X7 Single Wall
Seat Mission Cypress Mini Combo
Seat Post Diameter 25.4mm
Tires Mission Tracker 16x2.4
