Profile Z-Coaster hub
DESCRIPTION
36h
RHD or LHD specific
9t driver
three pawls with individual springs
48 points of engagement
6903 hub bearings (2x)
6802 driver bearings (2x)
6809 outer driver support bearing
the ZCoaster's pawls are "Z" shaped to allow for engagement/disengagement by the center Slack-Cam Ring. This also allows for adjustable slack. forward engagement drives the hub, while backwards engagement releases the driver from shell for some freecoastin’ sexy time!
removing the flat spring spacer and replacing it with the cassette conversion spacer (included with hub) will allow for normal cassette use. the hub will not function as a freecoaster if the cassette conversion spacer is installed

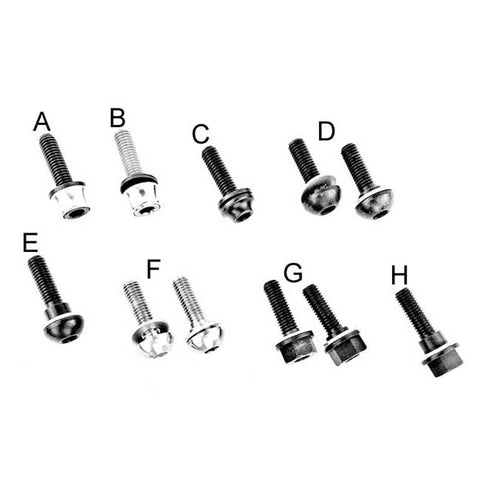

CROMO (cromoly) and TI (titanium, add $91) female axles axles accept 3/8" x 16 tpi bolts with the following options:
a) cromo standard bolts with AL Volcano washers
b) titanium standard bolts with AL Volcano washers - add $35
c) cromo Madera Beach bolts (3/8" bolts)
d) cromo Button bolts (full 3/8" or 3/8" with integrated 14mm adapter)
e) cromo Button PEG bolts (3/8" with integrated 10mm long 14mm adapter for peg / dropout)
f) titanium Button bolts (full 3/8" or 3/8" with inregrated 14mm adapter) - add $35
g) cromo Hex bolts (full 3/8" or 3/8" with integrated 14mm adapter)
h) cromo Hex PEG bolts (3/8" with integrated 10mm long 14mm adapter for peg / dropout)
- bolt chart available as you click through product images
- all bolts accept 8mm Allen key - “Hex” bolts also accept 17mm wrench or socket
- you can select hub cone spacer color (non-drive side only) *
* if you select Volcano washers, we'll match to cone spacer color
- please include instructions in the “order comments” if you want an axle / bolt configuration not listed in the choices above (example: one Hex bolt and one Hex PEG bolt on a hub, etc.)
14mm GDH male axle options:
heat-treated cromo with alloy or cromo axle nuts
titanium with alloy or cromo axle nuts add $91
driver options:
cromo 1-pc driver: 9t cromo
titanium 1-pc driver 9t (add $56)
Slack-Cam Ring options:
20º / 33º / 45º (45º = 1/8 of a crank)
60º (1/6 of a crank)
75º (1/5 of a crank)
90º (1/4 of a crank)
115º (1/3 of a crank)
